型號：DN100-DN5000，壓力級別0.1Mpa-2.5Mpa
連接方式：1、法蘭連接 2、接管連接
橫向補償量：根據用戶要求

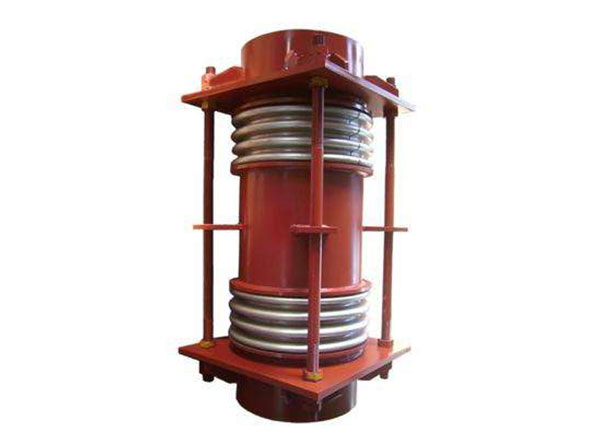

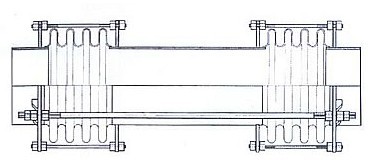

使用說明：大拉桿橫向型波紋器可以補償彎曲管段的橫向位移和量值不大的角位移，通常不用來補償角位移。該補償器由接管﹑二個波紋管以及大拉桿等零件構成。它能吸收管系任意平面內的橫向位移。位移球面螺母繞球面墊圈轉動，同時拉桿還具有承受內壓推力能力。該補償器兩個波紋管、長中間接管以及大拉桿等零件構成，它能吸收管系任意平面內的橫向位移。位移球面螺母繞球面墊圈轉動，同時拉桿還具有承受內壓推力能力，
JDH型大拉桿橫向波紋補償器安裝使用注意事項： 1.膨脹節上的小拉桿是安裝運輸“冷緊”用的，不可作為承力件，產品在管道上安裝完畢后，必須將其拆除，方可投入運行。
2.當對膨脹節的橫向位移量要求較大或系統壓力較高時，可對膨脹節進行“冷緊”，冷緊量是實際橫向位移的一半，即1／2Y。冷緊方向與橫向位移方向相反進行。
工作溫度≤420℃疲勞壽命1500次
技術參數：
|
公稱通徑
|
波數
|
壓力等級MPa
|
橫向補償量mm/剛度N/mm
|
大外徑尺寸mm
|
|||||
|
DN
|
產品長度mm
|
||||||||
|
mm
|
1200
|
1500
|
2000
|
2500
|
3000
|
3500
|
|||
|
100
|
4+4
|
O.25
|
107/2.2
|
243/1.2
|
354/0.6
|
465/0.3
|
-
|
-
|
310
|
|
0.6
|
107/2.2
|
243/1.2
|
341/0.6
|
447/0.3
|
-
|
-
|
310
|
||
|
1
|
163/2.2
|
224/1.2
|
325/0.6
|
427/0.3
|
-
|
-
|
310
|
||
|
1.6
|
Apr-91
|
127/2
|
187/1
|
247/0.6
|
-
|
-
|
310
|
||
|
2.5
|
Aug-94
|
132/5
|
194/2
|
256/1
|
-
|
-
|
31O
|
||
|
125
|
4+4
|
O.25
|
181/2.8
|
251/1.5
|
369/0.7
|
487/O.4
|
-
|
-
|
360
|
|
O.6
|
172/2.8
|
239/1.5
|
351/0.7
|
463/0.4
|
-
|
-
|
360
|
||
|
1
|
161/2.8
|
224/1.5
|
330/O.7
|
435/0.4
|
-
|
-
|
360
|
||
|
1.6
|
Nov-99
|
140/6
|
209/3
|
277/2
|
-
|
-
|
360
|
||
|
2.5
|
Nov-94
|
133/6
|
197/3
|
262/2
|
-
|
-
|
360
|
||
|
150
|
4+4
|
0.25
|
199/6
|
278/3.2
|
410/1.6
|
542/1.0
|
-
|
-
|
410
|
|
0.6
|
186/6
|
259/3.2
|
382/1.6
|
506/1.0
|
-
|
-
|
410
|
||
|
1.O
|
122/10
|
170/6
|
251/3
|
332/2
|
-
|
-
|
410
|
||
|
1.6
|
108/12
|
153/6
|
230/3
|
307/2
|
-
|
-
|
41O
|
||
|
2.5
|
82/22
|
117/12
|
176/5
|
234/3
|
-
|
-
|
410
|
||
|
200
|
4+4
|
0.25
|
155/9.4
|
220/4.9
|
327/2.25
|
435/1.4
|
-
|
-
|
480
|
|
0.6
|
138/9.4
|
196/4.9
|
291/2.25
|
388/1.0
|
-
|
-
|
480
|
||
|
1.O
|
101/20
|
143/10
|
213/5
|
283/3
|
-
|
-
|
480
|
||
|
1.6
|
75/42
|
108/21
|
164/10
|
220/6
|
-
|
-
|
480
|
||
|
2.5
|
59/69
|
86/35
|
130/16
|
176/9
|
-
|
-
|
480
|
||
|
250
|
4+4
|
0.25
|
164/10.2
|
239/5.1
|
367/2.4
|
494/1.5
|
-
|
-
|
580
|
|
0.6
|
128/21
|
188/10
|
287/5
|
387/3
|
-
|
-
|
580
|
||
|
1
|
109/35
|
159/18
|
243/8
|
328/5
|
-
|
-
|
580
|
||
|
1.6
|
76/68
|
116/33
|
182/14
|
249/8
|
-
|
-
|
580
|
||
|
2.5
|
64/122
|
98/58
|
154/25
|
210/14
|
-
|
-
|
580
|
||
|
300
|
4+4
|
O.25
|
144/17.6
|
174/8.4
|
287/3.7
|
379/2
|
-
|
-
|
660
|
|
0.6
|
94/50
|
144/24
|
228/10
|
313/6
|
-
|
-
|
660
|
||
|
1.O
|
-
|
127/39
|
202/17
|
277/10
|
352/6
|
-
|
660
|
||
|
1.6
|
-
|
169/28
|
169/28
|
237/15
|
299/10
|
-
|
660
|
||
|
2.5
|
-
|
91/113
|
148/47
|
215/26
|
262/16
|
-
|
660
|
||
|
350
|
4+4
|
O.25
|
100/26
|
157/14
|
254/5
|
352/3
|
-
|
-
|
750
|
|
0.6
|
83/73
|
130/34
|
210/14
|
292/8
|
-
|
-
|
750
|
||
|
1
|
-
|
117/54
|
190/23
|
263/13
|
337/8
|
-
|
750
|
||
|
1.6
|
-
|
95/96
|
160/38
|
225/20
|
291/13
|
-
|
750
|
||
|
2.5
|
-
|
81/158
|
135/63
|
190/34
|
246/21
|
-
|
750
|
||
|
400
|
4+4
|
0.25
|
-
|
146/16
|
238/7
|
330/4
|
423/2
|
-
|
780
|
|
0.6
|
-
|
122/45
|
199/19
|
276/10
|
354/7
|
-
|
780
|
||
|
1.O
|
-
|
109/74
|
177/31
|
246/17
|
315/11
|
-
|
780
|
||
|
1.6
|
-
|
85/130
|
144/52
|
202/28
|
262/17
|
-
|
780
|
||
|
2.5
|
-
|
-
|
112/88
|
157/47
|
203/29
|
250/20
|
780
|
||
|
450
|
4+4
|
O.25
|
-
|
134/20
|
216/8
|
299/5
|
383/3
|
-
|
870
|
|
0.6
|
-
|
129/40
|
208/17
|
289/9
|
369/6
|
-
|
870
|
||
|
1.O
|
-
|
109/68
|
176/29
|
244/16
|
312/1O
|
-
|
870
|
||
|
1.6
|
-
|
-
|
115/9
|
162/48
|
210/29
|
258/20
|
870
|
||
|
2.5
|
-
|
123/26
|
86/198
|
122/105
|
158/65
|
193/44
|
870
|
||
|
500
|
4+4
|
O.25
|
-
|
119/53
|
199/11
|
277/6
|
355/4
|
-
|
920
|
|
O.6
|
-
|
99/90
|
193/22
|
267/12
|
342/8
|
-
|
920
|
||
|
1.O
|
-
|
-
|
160/38
|
222/21
|
285/13
|
-
|
920
|
||
|
1.6
|
-
|
111/54
|
101/127
|
43/66
|
186/41
|
229/27
|
920
|
||
|
2.5
|
-
|
108/108
|
76/284
|
107/149
|
140/91
|
172/62
|
920
|
||
|
600
|
4+4
|
O.25
|
-
|
83/220
|
188/22
|
265/12
|
342/7
|
-
|
1010
|
|
O.6
|
-
|
-
|
181/43
|
256/23
|
331/14
|
-
|
1O10
|
||
|
1
|
-
|
98/82
|
319/88
|
197/47
|
254/29
|
-
|
1010
|
||
|
1.3
|
-
|
-
|
98/182
|
143/93
|
187/56
|
232/38
|
1010
|
||
|
2.5
|
-
|
-
|
82/307
|
119/157
|
156/95
|
193/63
|
1010
|
||
|
700
|
4+4
|
O.25
|
-
|
-
|
166/32
|
236/17
|
305/11
|
-
|
1140
|
|
0.6
|
-
|
-
|
161/64
|
228/34
|
295/21
|
263/14
|
l140
|
||
|
1.O
|
-
|
-
|
117/132
|
165/70
|
214/43
|
264/29
|
1140
|
||
|
1.6
|
-
|
-
|
81/287
|
199/144
|
157/86
|
196/57
|
1140
|
||
|
800
|
4+4
|
O.25
|
-
|
-
|
146/45
|
208/24
|
27I/15
|
334/10
|
1240
|
|
0.6
|
-
|
-
|
141/93
|
20l/49
|
262/30
|
323/20
|
1240
|
||
|
1.O
|
-
|
-
|
102/182
|
146/95
|
190/59
|
235/40
|
1240
|
||
|
1.6
|
-
|
-
|
69/402
|
103/200
|
137/119
|
170/79
|
1240
|
||
|
900
|
4+4
|
0.25
|
-
|
-
|
-
|
184/49
|
249/28
|
314/18
|
1370
|
|
0.6
|
-
|
-
|
-
|
179/97
|
242/56
|
305/37
|
1370
|
||
|
1.O
|
-
|
-
|
-
|
139/17111
|
188/99
|
237/64
|
1370
|
||
|
1.6
|
-
|
-
|
-
|
103/369
|
139/213
|
176/139
|
1370
|
||
|
1000
|
4+4
|
0.25
|
-
|
-
|
-
|
194/52
|
266/30
|
340/19
|
1500
|
|
0.6
|
-
|
-
|
-
|
194/104
|
266/59
|
340/38
|
1500
|
||
|
1
|
-
|
-
|
-
|
148/185
|
204/106
|
260/68
|
1500
|
||
|
1.6
|
-
|
-
|
-
|
108/146
|
148/237
|
189/153
|
1500
|
||
| 注：如需法蘭連接按照JB81－59標準供貨．可根據用戶要求或其它標準供貨。 | |||||||||
| 注：通徑超過?1000的大拉桿橫向型補償器請?zhí)峁┫鄳膮?shù)，如需法蘭連接按照JB81—59標準，可根據用戶要求或其它標準供貨。 | |||||||||
